What’s after MVP?
- Model transformation(placing objects)
- View transformation(placing camera)
- Projection transformation
- Orthographic projection(cuboid to canonical cube $[-1,1]^{3}$)
- Perspective projection (frustum to canonical cube)
Cannonical cube to screen
- Define the screen space

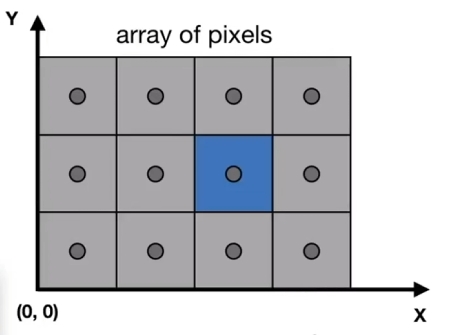

Pixel’s indices are in the form of $(x,y)$, where both x and y are integers, $pixel(x,y)$ is centered at $(x + 0.5, y + 0.5)$ And the screen covers range $(0,0)$ to $(width,height)$.
- ignore z

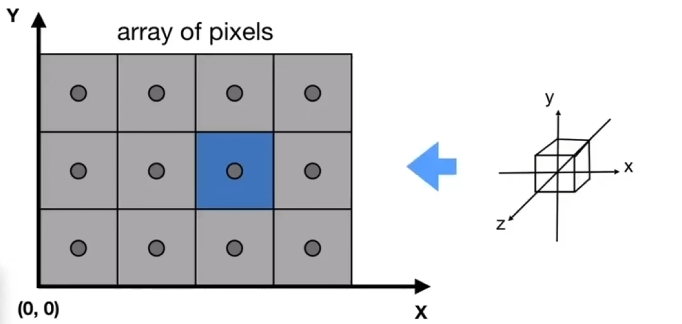

- transform in xy plane: $[-1,1]^{2}$ to $[0,width]×[0,height]$
- viewport transform matrix
It is not difficult to derive that the viewport transformation matrix is simply scaling plus translation.
